Modern vehicles rely on complex Engine Control Units (ECUs), and specialized ECU modifications have become popular to solve problems or enhance performance. Below we explore six of the most common ECU services – DTC OFF, EGR Delete, IMMO OFF, Boost Limiter Removal, EEPROM Save, and Seed-Key Algorithm Cracking – with real-world use cases across popular brands like Volkswagen, BMW, Mercedes, Ford, and Renault. Each section explains how the issue typically presents in vehicles and provides a case study example of a credible solution, showcasing technical prowess in a customer-friendly way.
DTC OFF (Disabling Diagnostic Trouble Codes)
Typical Scenario: Diagnostic Trouble Codes (DTCs) trigger check-engine lights and limp modes when the ECU detects a fault. In modified cars, certain DTCs can be unwanted – for example, after removing or disabling emissions equipment, you might get persistent fault codes. Many Volkswagen and Ford diesel owners encounter this when they delete a clogged DPF (Diesel Particulate Filter) or EGR valve – the ECU immediately throws codes (like P2002 – DPF efficiency below threshold) and may cut engine power. Even after fixing hardware, some “ghost” codes remain. By using a DTC OFF service, tuners edit the ECU’s error code table to prevent specific codes from lighting the MIL (Malfunction Indicator Lamp). This keeps the engine running at full capability without falling into limp mode due to those now-irrelevant errors. All other diagnostics remain normal; only the targeted codes are suppressed. This solution is popular on VW TDIs, BMW diesels with swirl flap removals, and many others where modifications or sensor faults would otherwise trigger nuisance warnings.
Case Study – VW TDI DPF Removal: A customer with a Volkswagen Passat 2.0 TDI had removed a soot-clogged DPF to prevent repeated regens. Unfortunately, the ECU immediately illuminated the check-engine light with DTC P2002 (DPF efficiency below threshold) and related exhaust sensor codes, severely limiting power. In this case, an ECU tuner read out the car’s firmware and applied a DTC OFF patch to disable all DPF-related codes. After the reflash, the Passat no longer checked for the removed filter, so no error was reported and limp mode was gone. The car resumed normal power and driveability with no check-engine light, while all other engine management functions stayed intact. According to the tuning file provider, “all of these problems can be solved by removing the DPF and rewriting the ECU”exactly what was done here. Similarly, BMW owners who remove problematic intake swirl flaps often get an ECU tune to delete the swirl flap error code, avoiding limp mode without physically fixing a feature they no longer use. The DTC OFF service provides a permanent software solution to keep modified vehicles running optimally without unwanted fault warnings.
EGR Delete (Disabling Exhaust Gas Recirculation)
Typical Scenario: The Exhaust Gas Recirculation (EGR) system is notorious for causing issues as vehicles age. EGR valves divert exhaust back into the intake to reduce NOx emissions, but they often clog with soot, stick open or closed, and trigger performance problems. Common symptoms in many BMW, Volkswagen, and Ford diesel models include a check-engine light, rough idle, poor acceleration, increased fuel consumption, or even engine knocking. Fault codes like P0401 (Insufficient EGR Flow) or P0402 (Excessive EGR Flow) are frequently logged when an EGR malfunctions. While one can blank off or remove the EGR hardware to stop the flow of exhaust gases, the ECU will sense the missing flow and flag an error. In fact, simply blocking the EGR without an ECU update is not enough – it will cause warning lights and potentially limp mode as the ECU thinks something is wrong. An EGR Delete service involves reprogramming the ECU to disable its EGR control and ignore the EGR sensor readings. After an EGR-off tune, the engine runs as if it never had an EGR system, eliminating those error codes and often improving reliability (at the expense of emissions). This is popular on vehicles like the BMW 3-Series 3.0d, VW Golf/Passat TDI, and Ford trucks (Powerstroke diesels) where EGR failures are common and costly to repair.
Case Study – BMW 330d EGR Off: A BMW 330d (3.0L diesel) owner was facing recurrent power loss and engine fault light illumination. Diagnostics showed code P0401 (EGR flow insufficient) and heavy carbon buildup in the EGR valve. Rather than replace the valve again, the owner opted for an EGR delete solution. A tuning specialist first blanked off the EGR pipe, physically preventing any exhaust recirculation. They then modified the BMW’s ECU software to disable EGR function. Once the ECU was re-flashed with the EGR maps turned off, the BMW stopped trying to open the EGR and no longer expected EGR feedback. As a result, the check-engine light for EGR stayed off, and the car’s torque and throttle response improved (no more sooty air diluting combustion). In essence, the ECU now treated the EGR as always closed. The technician noted that when an EGR valve is removed or blocked, “the ECU will no longer receive a signal from the EGR, causing the fault lamp to appear… We can remove this by reprogramming the ECU”. After the procedure, the 330d owner reported smoother acceleration and was happy to avoid future EGR clogging issues. This kind of EGR-off tuning is also regularly done on Ford Duratorq engines and Renault dCi engines that suffer EGR cooler failures – in all cases, the ECU delete prevents the typical errors and lets the engine breathe easier.
IMMO OFF (Immobilizer Disable)
Typical Scenario: Nearly all modern cars include an immobilizer – a security system that only allows the engine to run if the correct key (transponder chip) is present. This prevents theft, but it can also become a headache for legitimate owners and tuners. An IMMO OFF service disables the immobilizer function in the ECU’s programming, so the engine will start regardless of any key authentication. Why do this? One common use-case is when all keys are lost or the immobilizer module is faulty – the owner might not want to pay for towing the car to a dealer and expensive reprogramming. Disabling the immobilizer lets the car start with a new, unmatched key. Another scenario is an engine swap or ECU swap: for example, swapping a VW/Audi engine and ECU into a custom car or replacing a dead ECU with a used one. If the immobilizer codes don’t match, the engine won’t start (it will crank and immediately stall). IMMO OFF is a quick solution to make the ECU accept the new environment. Additionally, some tuners temporarily disable immobilizers because certain ECUs won’t allow performance flashing if the immobilizer is active. By turning it off, they avoid issues when writing new maps. In summary, IMMO OFF is used for troubleshooting, ECU replacements, or performance tuning when the security system gets in the way. Of course, disabling a security feature has downsides (the vehicle becomes less theft-proof), but for project cars or emergencies, it’s extremely useful.
Case Study – VW/Audi Immobilizer Delete: A tuning shop had a client with an Audi A4 B6 whose ECU was failing (causing random faults) and needed replacement. A good used ECU of the same part number was sourced, but it came from a different car with its own immobilizer code. Normally, one would have to match the new ECU to the car’s instrument cluster and key – a procedure requiring special dealer codes or tools. Instead, the shop performed an IMMO OFF on the donor Bosch ME7.5 ECU before installation. Using ECU editing software, they located the immobilizer code storage (in the ECU’s EEPROM) and set it to a “neutral” state (or removed the check entirely). According to an ECU decoding guide, “immo off…allows the engine to start regardless of the key’s transponder”. Once installed, the Audi’s engine started right up with no immobilizer handshake needed. The dash’s immobilizer light that normally flashes when an unauthorized key is used remained off as well. In practical terms, the new ECU thought it was in “all keys are valid” mode. The customer could now use the car normally without spending time and money on key matching. Another real example: a Renault Megane owner with a failing immobilizer receiver (and no spare key) had their ECU immo disabled so the car wouldn’t randomly refuse to start. On forums, drivers often ask “why do so many people want their immobiliser disabled?” – the answer is that it bypasses costly hurdles, and as one tuner quipped, with immo off you’ll never notice anything wrong unless someone tries to steal the car!. In all, IMMO OFF showcases technical skill in altering security code, and it often rescues vehicles from an otherwise bricked state.

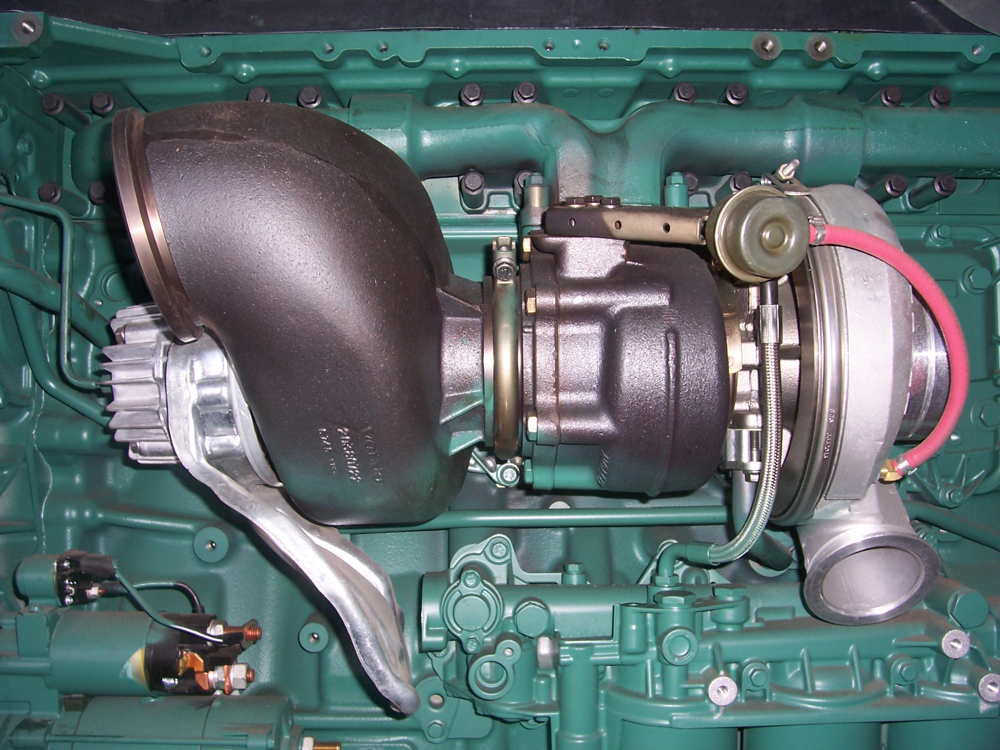

Boost Limiter Removal (Raising or Removing Boost Limits)
Typical Scenario: Turbocharged engines are typically programmed with protective boost limiters in the ECU. This can be a single value (SVBL – single value boost limit) or a table that caps the allowable boost pressure to prevent engine or turbo damage. Enthusiasts seeking more power – beyond what a simple remap can do – sometimes hit these factory boost ceilings. For instance, many BMW and Mercedes turbo diesels have boost limiters that will trigger an overboost fault if exceeded, cutting power to protect the engine. In performance tuning, hitting the boost cut feels like the car suddenly losing power once a certain pressure is reached. Removing or increasing the boost limiter is thus essential for high-power builds (e.g. larger turbo installs or high stage remaps). A classic example is the BMW X5 3.0d (EDC16 ECU): tuners found the stock software would throw a “charge pressure too high” DTC and limp mode if boost exceeded about 2400 mbar, even if the hardware could handle more. By adjusting the ECU’s boost control maps and limiters, one can raise this ceiling. Another scenario is Japanese performance cars like the Nissan Skyline GT-R or Mitsubishi Lancer Evo – their ECUs had fuel cut or boost cut at a certain PSI, which early tuners bypassed by chip-tuning the ECU or using piggyback controllers. In modern ECUs, boost limiter removal requires careful recalibration to avoid engine knock or turbo overspeed. It’s typically done alongside fueling and timing adjustments in a comprehensive tune. The result, when done correctly, is the ability to run higher boost pressures for more power, without the ECU intervening. This service is popular among car enthusiasts doing Stage 2 or Stage 3 upgrades on turbocharged Volkswagens, Fords (EcoBoost engines), and BMWs, as well as diesel owners pushing for maximum torque.
Case Study – BMW X5 Overboost Unlock: A performance workshop worked on a BMW X5 xDrive35d (E70) with a modified turbo and free-flow exhaust. The tuner attempted to increase boost targets to take advantage of the hardware, aiming for about 3.5 bar absolute pressure. However, during testing the ECU consistently triggered fault code 4521 – “Turbocharger boost pressure too high”, forcing the engine into limp mode at high throttle. In other words, the stock software’s boost limit was still in effect. The tuner went back into the ECU file and identified two relevant controls: the boost limit map and the single value boost limiter (SVBL). Initially, they had raised these values, but the car still hit a protective limiter. On a forum he noted, “I have raised boost limit map and SVBL to 3500 mbar but it cuts out again”, seeking advice. With further analysis, they discovered an overlooked safety map that was still capping boost, and also realized the turbo’s wastegate duty needed tweaking. After updating those tables and completely removing the last boost-cut condition, they tested again – this time no limp mode at 3.5 bar. The X5 pulled strongly all the way to redline with the desired higher boost. The final step was checking actual vs. requested boost to ensure the turbo wasn’t creeping higher than commanded. The once “tamed” ECU was now allowing the upgraded turbo to reach its potential. This case shows that boost limiter removal isn’t just about one value – it may involve multiple parameters and careful troubleshooting. A community tuner noted to double-check for “other issues in the maps” if simply raising SVBL doesn’t work, which proved true here. With the ECU fully unlocked, the BMW’s dyno results improved significantly. Similarly, in the Nissan tuning scene, people achieved boost limit removal by installing rechipped ECUs that eliminate the factory boost cut for running high boost setups. In all cases, skilled ECU modification allows the engine to safely push beyond factory constraints, unlocking considerable performance gains.

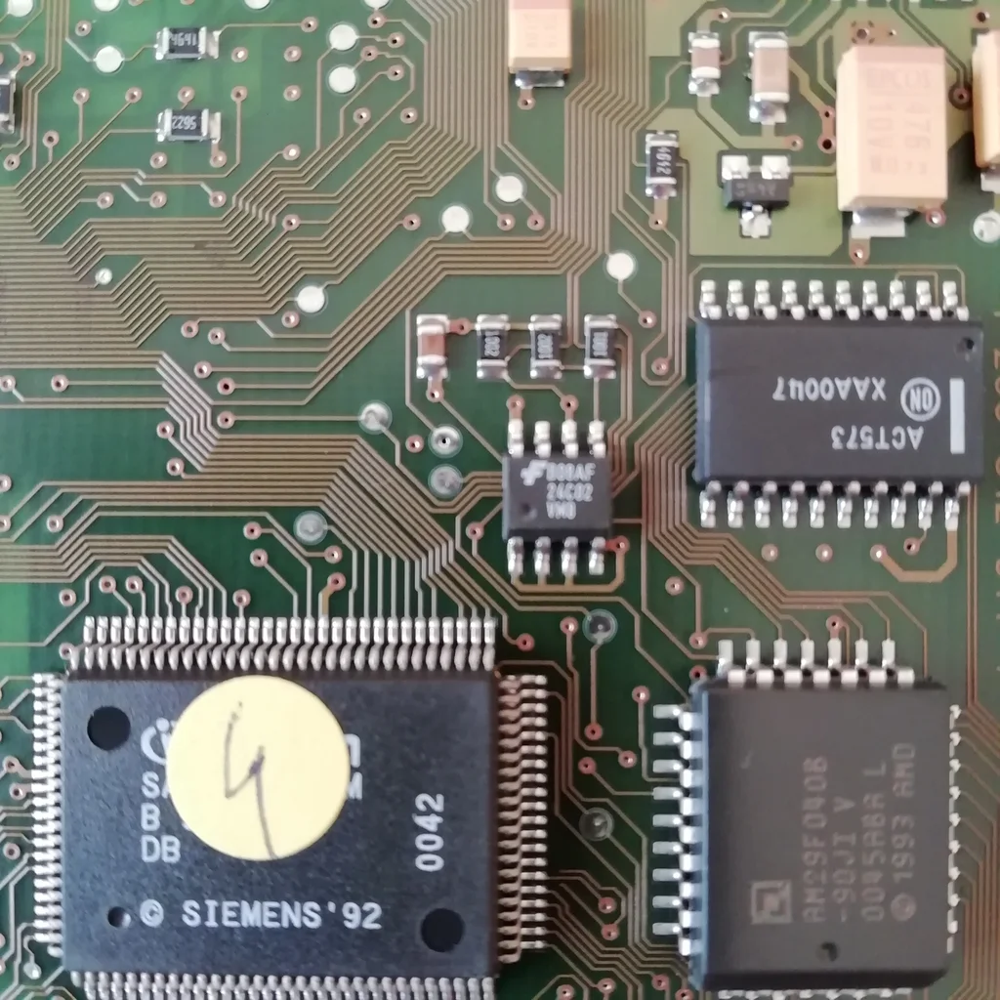

EEPROM Save (Reading/Cloning ECU Memory)
Typical Scenario: An EEPROM is a small memory chip on the ECU that stores non-volatile data – things like immobilizer keys, VIN, learned adaptations, or even user settings. “EEPROM Save” refers to reading and saving this data (or writing modified data to it) as part of an ECU tuning or repair process. Unlike the main firmware flash memory, the EEPROM usually holds configuration and is not erased during normal flashing. Real-world reasons to access it include cloning an ECU (transferring all data from one ECU to another), backing up the car’s original settings before a tune, or hacking features by altering specific bytes. For example, if you replace a damaged ECU in a Renault or Volkswagen, you often must also transfer the immobilizer and coding data from the old unit’s EEPROM to the new one, otherwise the car won’t start. EEPROM reading tools allow tuners to make this transfer electronically (or one can physically desolder the chip and move it). Another use-case is motorsport or off-road vehicles: tuners can store multiple calibration profiles and use the EEPROM to remember the last used profile or other settings. This advanced technique was demonstrated on certain Denso diesel ECUs (found in some Toyota and Mazda trucks) where the factory didn’t allow map switching – engineers found they could repurpose unused EEPROM space to store a “map selection” flag. In general, handling the EEPROM requires reverse-engineering knowledge since the data inside is often cryptic or checksummed. However, services advertising EEPROM/Eeprom modifications are increasingly common in the ECU tuning world, as they enable custom behavior that standard OBD flash tunes cannot achieve.
Case Study – Multi-Map Memory Hack: In a reverse engineering project, developers targeted a Denso diesel ECU used in a popular 4×4 (diesel SUV) with the goal of enabling on-the-fly map switching. The stock ECU could run different tuning maps (e.g., for eco vs power), but it had no provision to remember the driver’s choice after a key-off; it would default back each time. The team devised a clever EEPROM modification to solve this. First, they analyzed the ECU’s firmware and found an unused portion of the onboard EEPROM essentially a few bytes that were not utilized by the manufacturer. They then wrote a small piece of code (a firmware patch) that runs when the ignition is turned off: this code takes the current selected map ID and writes it into that spare EEPROM location. Upon the next startup, another patch reads that value from EEPROM and forces the ECU to load the corresponding map, thus preserving the map selection across key cycles. To implement this without adding any hardware, they also had to disable some non-critical DTC logging routines to free up program memory for their new code. The final result was seamless – the driver could switch maps via an existing input (like pressing the defogger button which the ECU was repurposed to detect), and whatever map they left the car in would be the map it starts in next time. This is a flawless EEPROM hack, as one report called it, because it used the ECU’s own persistent memory in a way the OEM never envisioned, with no downside to normal operation. The case study highlighted how they “reclaimed memory and added a reliable firmware patch — no hardware needed”. Beyond such exotic use, EEPROM saves are vital for everyday scenarios too. In one instructive example, a hobbyist replacing a Toyota ECU described the immobilizer challenge: “There’s an EEPROM chip… which holds the paired key data”; one solution was to read the original EEPROM and overwrite the new ECU’s EEPROM with it. Lacking a programmer, he ultimately swapped the 8-pin chip physically to the new board, instantly transferring all key and configuration data. The car started as if it was the original ECU. This illustrates the importance of EEPROM work: whether it’s transferring critical identification data or implementing new features, being able to save and modify that memory opens up possibilities beyond ordinary tuning.
Seed-Key Algorithm Cracking (Unlocking Secured ECUs)
Typical Scenario: As ECU tuning and diagnostics grew, manufacturers introduced security measures to prevent unauthorized access. One common protection is the Seed-Key algorithm in ECU communication protocols (used in UDS or KWP2000 diagnostics). When you attempt to access a protected function (like reprogramming or reading certain memory areas), the ECU will send a “seed” – a random number or byte string. The external tool (tester) must reply with the correct “key,” which is computed from the seed using a secret algorithm known only to the manufacturer. If the key is correct, the ECU grants higher access (security unlocked); if not, it refuses. Cracking this algorithm is often necessary for tuners who want to unlock an ECU for tuning when no public unlock code is available. This is especially relevant for newer Volkswagen, Audi, BMW, and Mercedes ECUs that come locked from factory or have tuner protection. It’s also a factor in adding new keys to some cars or disabling certain features essentially any operation the OEM wants to guard will require the seed-key handshake.
The process of breaking it involves reverse-engineering: capturing multiple seed-key pairs by querying the ECU, analyzing patterns, and sometimes directly disassembling the ECU’s firmware to find the code that. These algorithms can range from very simple XOR or addition schemes to complex cryptographic routines. Specialists in ECU security use tools like debuggers, emulator hardware, and custom code analysis to derive the secret. Once obtained, they can either implement it in their own software or simply produce valid keys on-the-fly to gain access. This service is highly technical and showcases top-tier ECU hacking skills. For popular brands, cracked seed-key algorithms sometimes become available in tuning software; for rarer ECUs, a custom crack might be needed. The goal is to achieve an “unlock” without any physical damage or bypass – essentially tricking the ECU into thinking an authorized tool is present.
Case Study – Unlocking a Protected Mercedes ECU: A tuning firm encountered a Mercedes-Benz ECU (Bosch MED17) that was “tuner-protected” – no read or write was allowed via OBD without the right security access. The client wanted a performance remap, but the standard tools returned a “Security Access Denied” response. To solve this, the firm undertook Seed-Key cracking. Engineers gathered multiple challenge-response pairs by attempting security access and logging the ECU’s seeds and the refusal keys. By analyzing several of these hex values, they suspected the algorithm involved a simple encryption with a hidden key. However, to be sure, they carefully pulled the ECU’s firmware (by bench-reading in boot mode) and located the seed-key routine in the code. Over a week, they reverse-engineered this routine identifying a mix of XOR shifts and look-up tables being applied to the seed to produce the expected key. Once they replicated the algorithm, they implemented it in their tuning software.
At the next try, when prompted with a seed, their program computed the correct key – the ECU granted level 2 access. They were then able to read and write the ECU freely, and hence upload the new performance map. An in-depth guide on this kind of process explains finding patterns like XOR masks or bit rotations and even checking for built-in cryptographic constants while analyzing the ECU’s binary. In our case, the Mercedes ECU used a proprietary 16-bit cipher. After unlocking, the tuner flashed a stage 1 tune, resulting in a healthy power increase. This success echoed what others have advertised: one Reddit post from a reverse-engineer stated they “extract seed/key algorithms” as a service for various ECUs – a testament to demand. Another resource describes seed-key as “a short string of bytes the ECU provides, and the tool must transform it using a secret algorithm… If they agree, access is authorized”. The cracked algorithm essentially gave the tuning firm the keys to the kingdom. Today, the same firm can unlock similar ECUs in minutes, offering customers with locked-down ECUs (often Volkswagen/Audi after dealer updates, or newer Ford ECUs) the ability to tune their cars when other shops cannot. This seed-key cracking capability is a major selling point for advanced ECU tuning companies, as it demonstrates expertise in overcoming security barriers while maintaining a completely stock appearance and operation of the ECU.
ECU Modification Services & Reverse Engineering Services
Each of these ECU modification services addresses a specific need, from eliminating annoying dashboard lights to enabling major performance upgrades or solving immobilizer headaches. The above case studies are taken from real-world scenarios at Volkswagen, BMW, Mercedes, Ford, Renault and more, and demonstrate how skilled engineering and tuning can solve the underlying problem in a safe, software-driven manner. Whether it’s turning off an unnecessary DTC, clearing an EGR for reliability, bypassing an immobilizer to get a car running, pushing a turbo beyond its stock limits, saving critical ECU data or cracking codes that lock an ECU, our skilled engineers can do it all. By sharing these success stories, we aim to inform and reassure drivers worldwide that no matter what the ECU challenge, there is a proven solution available.
